Description

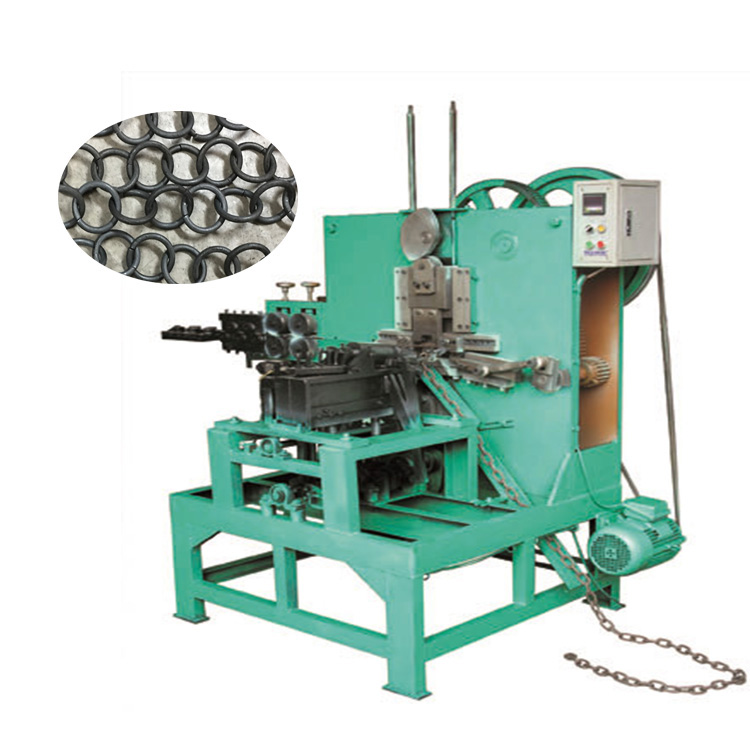

Chain making machine information as following:
1. Metal wire size: 1.5 mm - 4.0 mm
2. Max. feeding length: 2000 mm
3. Motor: 1.5 kw
4. Production capacity: 50-60 pieces per minute
5. Dimension : 1900 x 1300 x 1550 mm
6. Weight: 600.kg

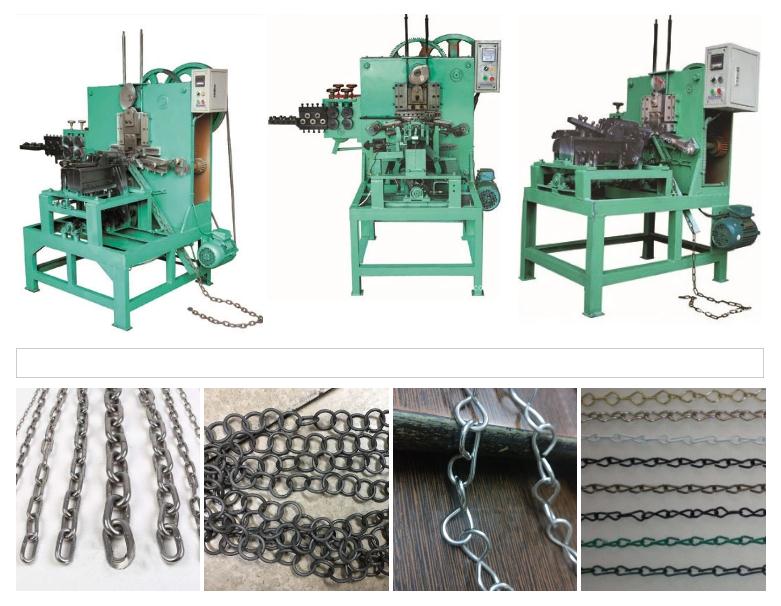

Chain making machine models as following:
|
Model
|
Wire (mm) |
chain size |
Capacity |
Power(kw) |
Dimension(mm) |
Weight(kg) |
|
|
Inside length |
Outside length |
||||||
|
CBM3 |
1.5-3 |
14-30 |
4-6 |
50-60 |
0.75 |
1560×880×1550 |
180 |
|
CBM4 |
1.5-4.0 |
10-35 |
5-10 |
42-48 |
0.75 |
1080×1180×1480 |
200 |
|
CBM6 |
2.0-6.0 |
15-45 |
5-12 |
40-45 |
1.5 |
1270×1270×1540 |
350 |
|
CBM8 |
3.0-8.0 |
20-50 |
6-12 |
35-40 |
2.2 |
1300×1100×1450 |
600 |
|
CBM10 |
5.0-10 |
35-55 |
10-17 |
30-40 |
3 |
1700×1380×1680 |
1300 |
|
CBM12 |
6.0-12 |
42-60 |
14-21 |
25-35 |
4 |
1850×1600×1850 |
1900 |
Maintenance of chain making machine
1.Lubricate chain making machine two times per day.
2.Keep chain making machine inside and outside clear.
3.Change chain making machine belt two months.
4.One chain making machine producing different chains by change molds.
5.Chain making machine guaranty is 12 months for main machine.
6.We offer molds and spare parts after sale.
7.we offer oversea technician to client company if request.
If want to know more about chain making machine,feel free contact us
Email:sales@metalwiremachinery.com
Mobile/whatsapp:+8615131132009
