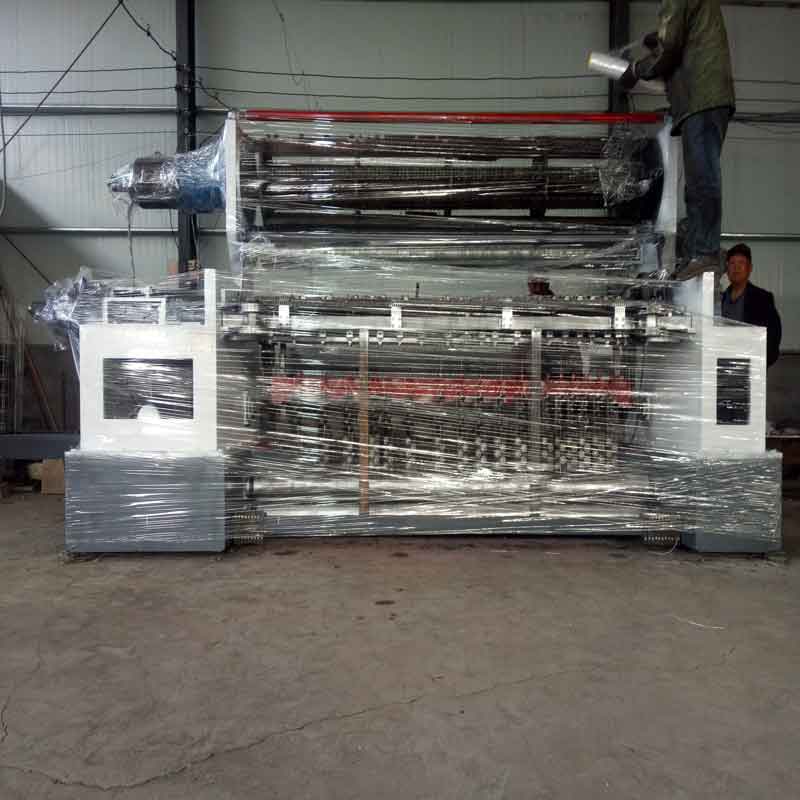

Automatic deer fencing making machine
|
Model |
ZC-1500 |
ZC-2100 |
ZC-2440 |
|
Maximum Fence Width |
1.524M |
2.082M |
2.438M |
|
Maximum Number of Line Wires |
16line |
18line |
20line |
|
Line wire spacings |
Minimum 76mm (3'')can be increased by additional increments of 12.5mm(1/2'') or multiples of 12.5mm(1/2'') |
||
|
Stay wire spacings |
150mm,300mm,and450mm(6'',12'',and18'') |
||
|
Line wire size |
2.0mm-2.8mm |
||
|
Stay wire size |
2.0mm-2.8mm |
||
|
Knot wire size |
2.0mm-2.4mm |
||
|
Length of roll |
Up to 220m(660ft) |
||
|
No. Strokes(stay wire) Per Minute |
Up to 28 |
||
|
Motion system |
Controlled vector and servo drives |
||
|
Power motor |
Siemens servo motor |
||
|
PLC control of machine functions |
Siemens |
||
|
Motion supply voltage |
3 phase 480V AC 50/60HZ |
||
|
Control supply voltage |
DC 24V |
||
|
Machine weight |
5900kg |
6500kg |
9200kg |
|
Main body size |
3900*6800*2250 |
4450*6800*2250 |
4800*6800*2250 |
|
Approximate Floor Area Required |
7.4m*14m |
8m*14m |
8.4m*14m
|
After-sales service staff costs：
|
Service type |
Travel expense |
Room and board |
Labor cost |
|
|
First installation |
N |
Y |
N |
|
|
Other times |
Y |
Y |
100 USD/day |
|
The machine part：
|
warranty |
Warranty period |
Part cost |
expressage |
Cost of installation |
|
|
Main body |
1 year |
N |
Y |
Y |
|
|
Motor and the control BOX |
1 year |
N |
Y |
Y |
|
|
Vulnerable part |
3 year |
N |
Y |
Y |
|
NOTE：
1.If the motors and electronic components you use are not made in China, the warranty policy for these components is governed by they company's policy
2.If the motor and controller you choose are made in China, their warranty period is two years. The warranty covers the whole part
3.After the end of the warranty period, the seller shall provide the buyer with the drawings and processing technology of the wearing parts
If you are interested in automatic deer fencing making machine,feel free contact with us.
Email:sales@metalwiremachinery.com
Mobile/whatsapp:+8615131132009
